Gang Sheets

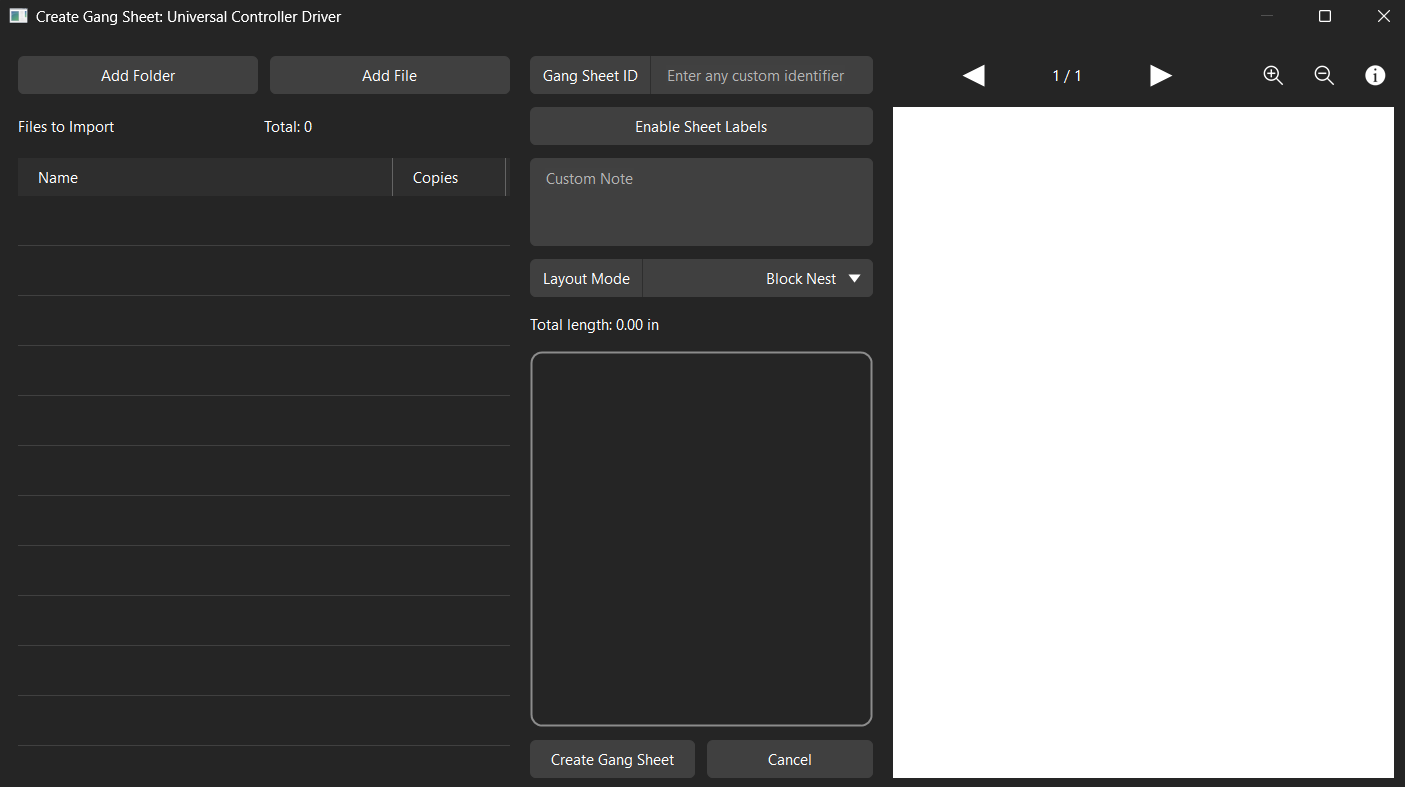

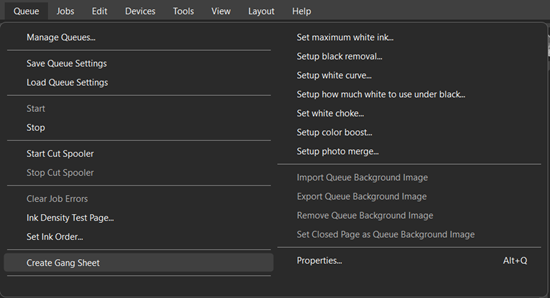

The Gang Sheet Wizard allows users to quickly import multiple jobs into a single job group directly from an external folder. Once the Create Gang Sheet menu item has been clicked, the Create Gang Sheet dialogue window will appear.



Begin the process by importing the desired files into the gang sheet. Use the Add File button to manually select and add individual files. The Add Folder button can be used to add an entire folder into a single gang sheet.

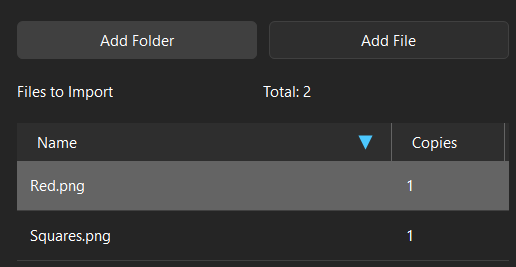

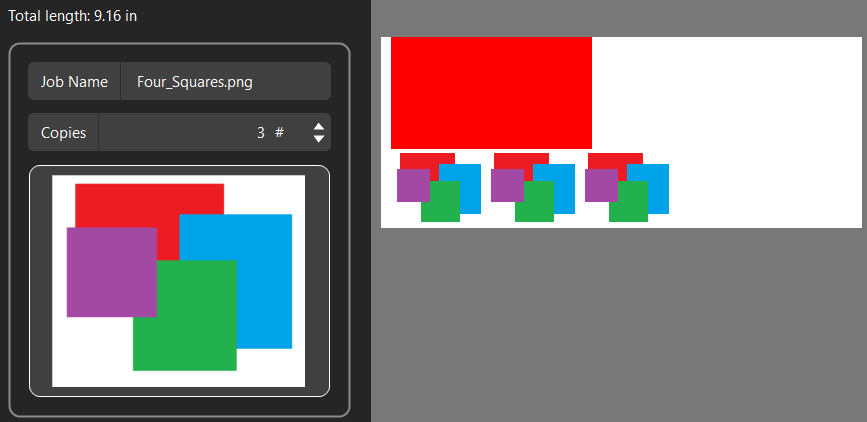

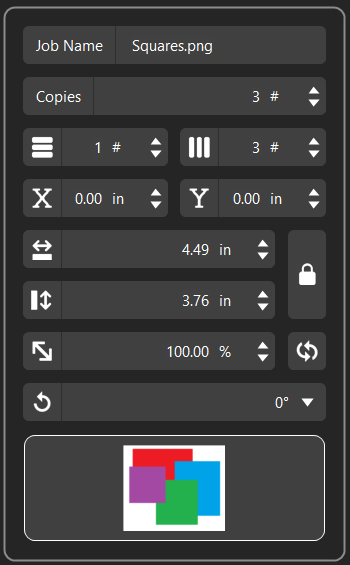

All imported files are displayed by file name in the file list section of the Create Gang Sheet dialogue, as well as the number of copies of each file. Selecting a file enables the fields to rename the selected file or adjust the number of copies in the gang sheet.

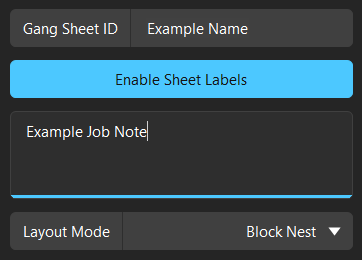

The fields on the right side of the Create Gang Sheet window provide the ability to adjust the properties of the gang sheet. From top to bottom, these fields allow users to:

• Change the gang sheet name (Gang Sheet ID)

• Toggle on labels

• Add custom notes

• Adjust the layout defaults for the gang sheet

Toggling on labels adds the Gang Sheet ID, Date & Time, Print Mode, and Size to the page.
